Slurry pump curve information you should know

Slurry slurry pump curve is one of the important information source for slurry pump.

And when you need to check the pump information, there is very important data you show know: curve.

The pump curve is tested drawing to show the pump information. Such as material, shaft seal, speed, capacity, head.

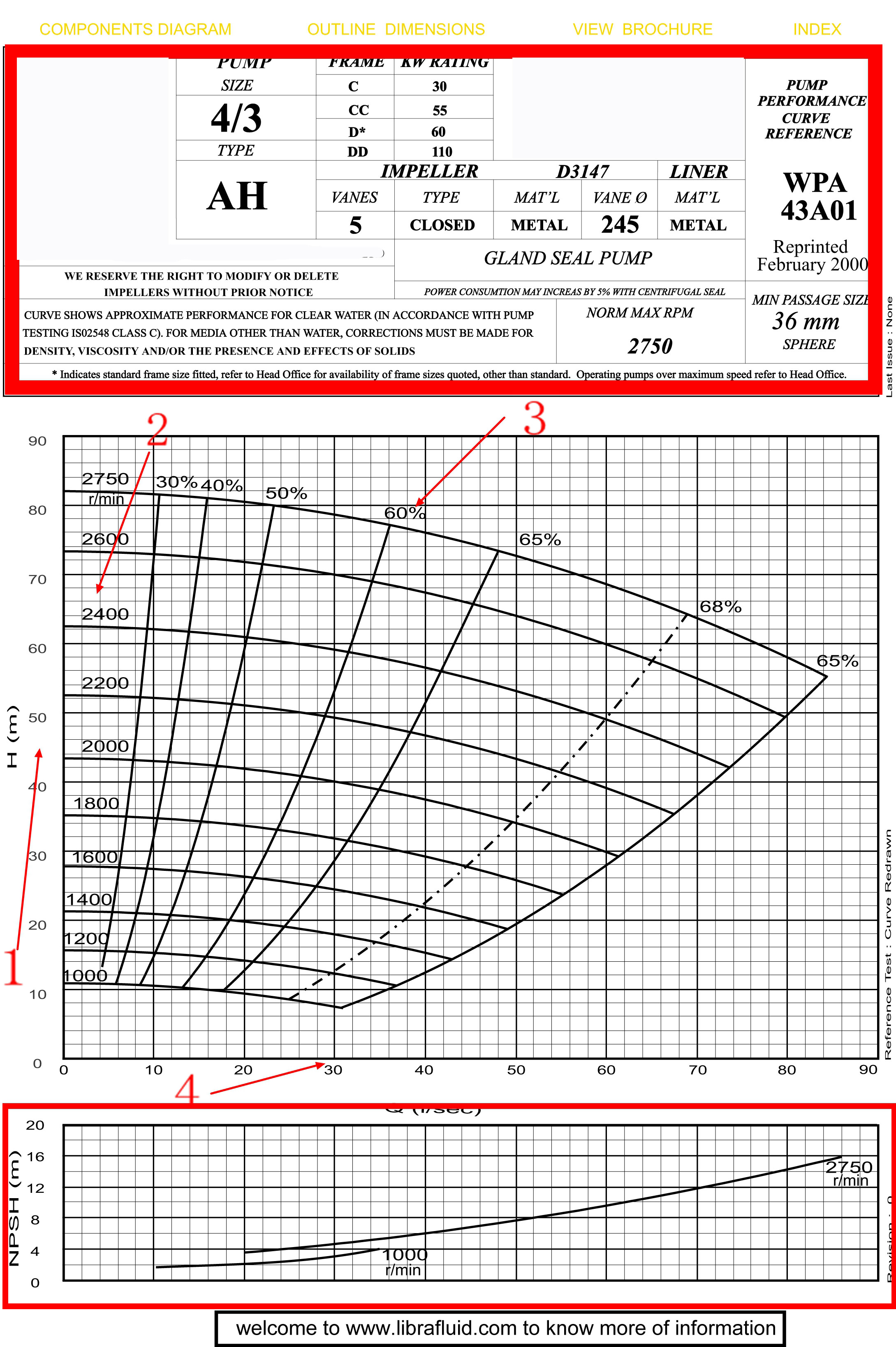

Bellow is one common slurry pump curve

Slurry pump curve

Slurry pump curve

As you can see, the Curve chart head show the information of the company and some pump information as, impeller, shaft seal, material

1 Pump head

On the picture, NO. 1 show the pump head information, such as 10, 20, 30 all in meters. Head is the height at which a pump can raise water up. This decide the pump transport performance.

2 Pump speed

The data on the picture shows 1000, 1200, 1400r/min

3 Pump efficiency

This data is the pump efficiency on picture No. 3. Pump efficiency is defined as the ratio of water horsepower output from the pump to the shaft horsepower input for the pump.

4 Pump Capacity

No. 3 on the picture is another important information for slurry pump. This data shows the pump capacity.


The bottom data called Net Positive Suction Head. And use NPSH for short.
