IHF Centrifugal Chemical Pump

Pump Type: Centrifugal slurry pump
Flow 1-1500 m3 / h
Head 5-80 m
The liquid max.temperature 120 DEG.C
Working pressure Max 16 bar

Inquiry Now
IHF chemical pump is single stage single suction type fluoroplastic lining chemical centrifugal pump.This pump is designed and manufactured as per ISO2858 standard.

The pump has corrosion resistance, wear-resisting, high temperature resistant, not aging, high mechanical strength, stable operation, advanced and reasonable structure, sealed performance can be, remove the tight overhaul in one hundred, long life and other advantages, is the world one of the latest corrosion resistant equipment.

IHF Centrifugal Chemical Pump drawing

IHF Centrifugal Chemical Pump drawing

IHF type centrifugal pump widely used in chemical, pharmaceutical, oil, metallurgical, metallurgy, electric power, electroplating, dye, pesticides, pulp and paper, food and other industries, such as car manufacturing of hungry pickling, spray-paint technology; Non-ferrous metal smelting of electrolyte transport; Ionic membrane less alkali chlorine water in the project, wastewater treatment and add acid process what large feeling.

But in 85 ℃ ~ 200 ℃ temperature conditions conveying any concentration of the teahouse heating sulphuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, wang, alkali, strong oxidizer, organic solvents, reducing agent, strong corrosive medium.

Bellow materials are material we do,PFA,PTFE,FEP, if you have any requirements on slurry pump materials, just let us know

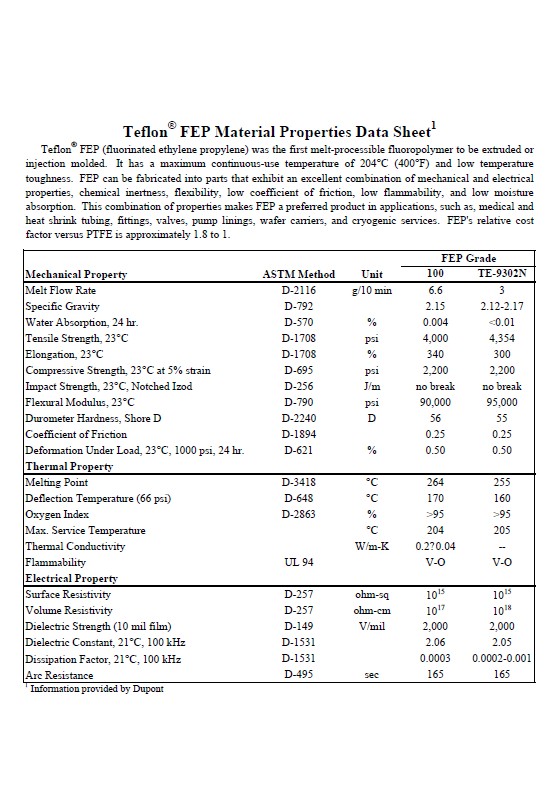

FEP Material Properties

FEP Material Properties

PFA Material Properties

PFA Material Properties

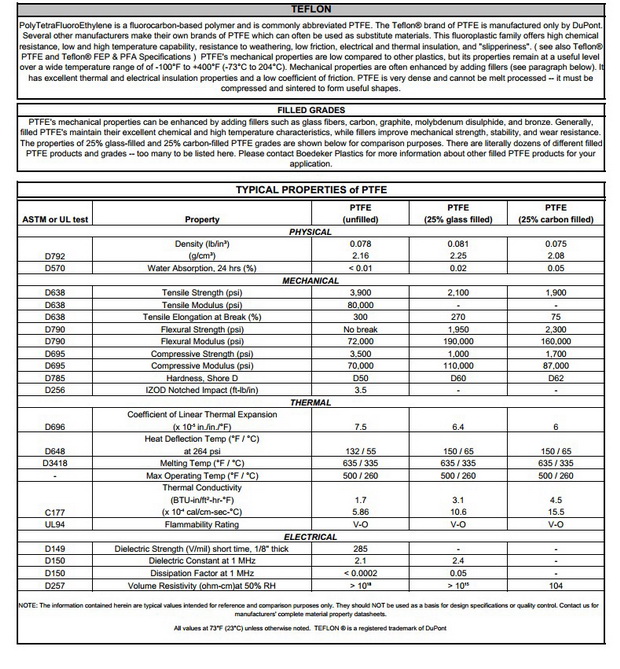

PTFE Material Properties

PTFE Material Properties

ModelSpeedCapacity HeadEff.Shaft Power Motor Power(NPSH)r
(r/min)m 3 /hL/S(m)(%)KWKWm
IHF25-20-12529003.20.8920520.340.752.2
IHF25-15-25029001.60.4475211.5642.5
IHF40-25-14029006.31.7525620.691.12.5
IHF40-25-25029006.31.7575284.65.52.5
IHF50-40-12529007.52.0823431.092.22
12.53.4720511.332.22
154.718491.52.22.5
IHF50-40-12514503.751.045.75360.160.55
6.31.745450.190.551
7.52.084.5440.210.55
IHF50-40-16029007.52.0834.5332.1332
12.53.4732462.3732
154.1730502.4532.5
IHF50-40-16014503.751.048.6290.30.552
6.31.748400.340.552
7.52.087.5430.360.552.5
IHF50-40-20029007.52.0851.8283.785.52
12.53.4750294.365.52
154.1748434.565.52.5
IHF50-40-20014503.751.0412.9230.570.75
6.31.7412.5330.650.751
7.52.0812360.680.75
IHF50-40-250290012.53.47822312.14152
205.55803412.82152.5
256.9478.53913.7153.2
IHF50-40-25014506.31.7420.5172.073
102.7820272.0231
12.53.4719.6312.153
IHF65-50-1252900154.1721.3471.853
256.9420622.232
308.3318.6632.43
IHF65-50-12514507.52.085.4440.250.55
12.53.475550.310.551.2
154.174.5560.330.55
IHF65-50-1602900154.1734.2443.185.52
256.9432573.825.52
308.3330594.155.52.5
IHF65-50-16014507.52.088.55390.450.75
12.53.478510.530.751.2
154.177.552.50.580.75
IHF65-50-2002900154.1753.2415.37.52
256.9450526.557.52
308.3347.653.57.277.52.5
IHF65-50-20014507.52.0813.3350.781.1
12.53.4712.5460.931.11.2
154.1711.947.51.021.1
IHF80-65-1252900308.3323.2603.165.53
5013.920693.955.53
6016.717.6674.295.54
IHF80-65-1251450154.175.8540.440.752.5
256.945640.530.752.5
308.334.4620.580.753
IHF80-65-1602900308.3336575.167.52
5013.932676.57.52.3
6016.728.4657.147.53.3
IHF80-65-1601450154.179500.741.5
256.948620.881.51.4
308.337.2620.951.5
IHF80-65-2002900308.3355.2538.5152
5013.9506310.8152.5
6016.745.26211.9153.2
IHF80-65-2001450154.1713.5441.252.22
256.9412.5571.492.22
308.3311.5581.62.22.5
IHF80-65-2502900308.33845213.222
5013.9805717.3222.4
6016.7755920.7722
IHF80-65-2501450154.1721491.753
256.9420532.2731.4
308.3318.8562.743
IHF100-80-12529006016.724675.8611
10027.820787113.2
12033.316.5747.2811
IHF100-80-1251450308.336640.771.5
5013.95750.911.51.8
6016.74710.921.5
IHF100-80-16029006016.7376010.1153.8
10027.8327311.9154.3
12033.3287312.5155
IHF100-80-1601450308.339.25581.32.23
5013.98691.582.23.4
6016.77681.682.23.7
IHF100-80-20029006016.7566314.5223.4
10027.8507218.9223.9
12033.3447120.3225.2
IHF100-80-2001450308.3314601.915.52.5
5013.912.5682.55.52.5
6016.711632.855.53
IHF100-80-25029006016.7885725.2373
10027.8806832373.6
12033.3746736.1374.5
IHF100-80-2501450308.3322503.65.52.5
5013.920634.35.52.5
6016.718.5644.75.53
IHF125-100-180290012033.3616829.3454.5
20055.6507735.4455
24066.7417038.3455.8
IHF125-100-18014506016.715.25643.897.52.5
10027.812.5734.667.52.9
12033.310.25665.087.53.6
IHF150-125-160290020055.6326228.130
IHF150-125-160145010027.88583.85.5
IHF150-125-160290030083.3326043.645
IHF150-125-160145015041.78565.87.5
IHF150-125-180290020055.6456239.545
IHF150-125-180145010027.812605.47.5
IHF150-125-180145020055.6125611.715
IHF150-125-200290020055.6507237.855
IHF150-125-200145010027.8127212.115
